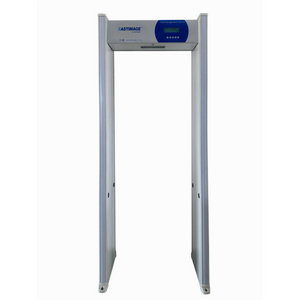

EI-MD3000 A08 Portable Folding Pull Bar Type High Sensitivity Digital Walkthrough Metal Detector
Product Instruction
Eastimage is an industry-leading provider of security inspection products and safety solutions. Established in 2003, the company has 50,000 square meters of independent property rights of the production base. After more than 20 years of development, Eastimage has become a major supplier and a leading R&D and manufacturing base for security products in China.
Portable folding pull bar type walk through metal detector is a kind of lightweight, high performance security door, the metal detection sensitivity of this gate is very high,with portable, mobile, waterproof, and light features, only needs one operator to carry it to any location, assemble in five minutes, and make it work properly, so it is very suitable for sports, meetings, school, etc. At the same time, it has the characteristics of easy operation and complete portability, so easy to operate, almost can by used by operator who has no any training.
This product has obtained several appearance organization patents, and has obtained the software system registration copyright.This product series uses electromagnetic field to detect the detection structure of portable metal objects and uses sound and light alarm to indicate that the portable metal objects of the passer exceed a certain amount.It is composed of host, high frequency signal generator, signal receiver and infrared sensor.With a luxurious and elegant appearance, it offers strong metal detection capabilities, a wide detection range, and a unique Internet-based remote operation management system. It is lightweight,waterproof,and can be disassembled into eight components for easy carrying and transportation. As a leader in the portable security door market, it stands at the forefront of innovation. This security door can be customized according to customer's requirements, including color and pattern.
Feature Selection
In order to meet more needs of users, the device inherits more humanized functions for users to choose and match, such as 7-inch LCD touch screen, visual intercom system, face recognition constant temperature/camera system,computer networking, mobile APP cloud management system, etc. More functions can be developed as required.
7 inch LCD (standard configuration)
Face identification/temperature
measurement/photo system(customized)
Digital tube display(optional)
Computer networking, mobile phone APP cloud management system(optional)
Working Status Display
Power Off Standby Mode Walk Through Alarm
Leading Technology
★Multiple defense area technology:8,16,24 detection defense area can provide self-switching, intelligent partition(can provide more defense area upgrade technology)
★Operating frequency band:ultra-wide operating frequency band (0-120),with adaptive function of working environment.
★Detection area sensitivity:mobile phone APP remote control come true, zero distance all over the world.
★Super shell protection technology:IP67 superior protection performance(optional)
★Adaptive diagnosis system:when the system starts up, the adaptive diagnosis and detection hardware will work to escort you.
Product Advantage
★Adaptive debugging system:when the system enters the debugging system, it can adapt to debugging detection standard.
★Start and stop technology:infrared device has automatic start and stop technology, life extension 100 times.
★Sensitivity of each detection area can be adjusted freely.
(with adaptive regulation freely technology)
★The detection and defense zones can be divided by self-adjustment (the number ofdetection and defense zones can be compiled by itself)
★Sound, light alarm, alarm tone, alarm duration can be adjusted free.
★Query function: the system has real-time information query function.
★Detection ability:has the detection passing ability of more than 100 people in 1 minute.
Technical Parameters
●Test object: contraband, more magnetic metal
●Channel size: 2051x720x500mm (width can be customized 720~1500mm)
●Folding size: 889x606x484mm
●Working humidity: 99%,no condensation
●Vertical dimension:2250x830x500mm
●Package size :985x700x570mm
●Working environment:-20℃~85 ℃
●Power supply: The whole system is equipped with polymer battery, which can last 8,16,24,48 and 72 hours (optional)
●Input: AC 12V/9.5A
●Output:DC12V/4.2A 12W
●Weight: N.W 42kg,G.W 52kg
Application Area
Portable Mobile Design
With ease of operation and complete portability, it can be unrolled and transported to any location by a single operator and assembled in five minutes to make it work properly.
